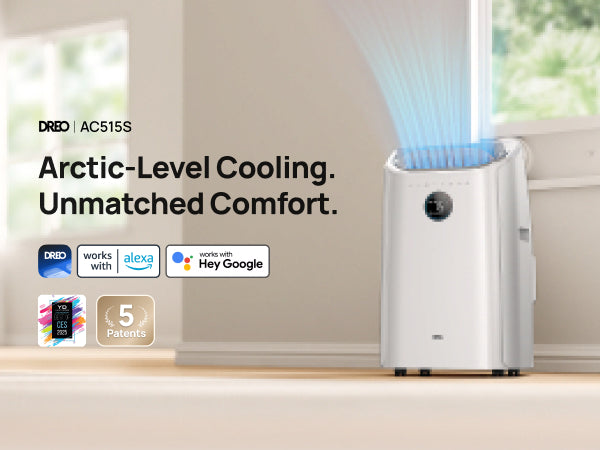

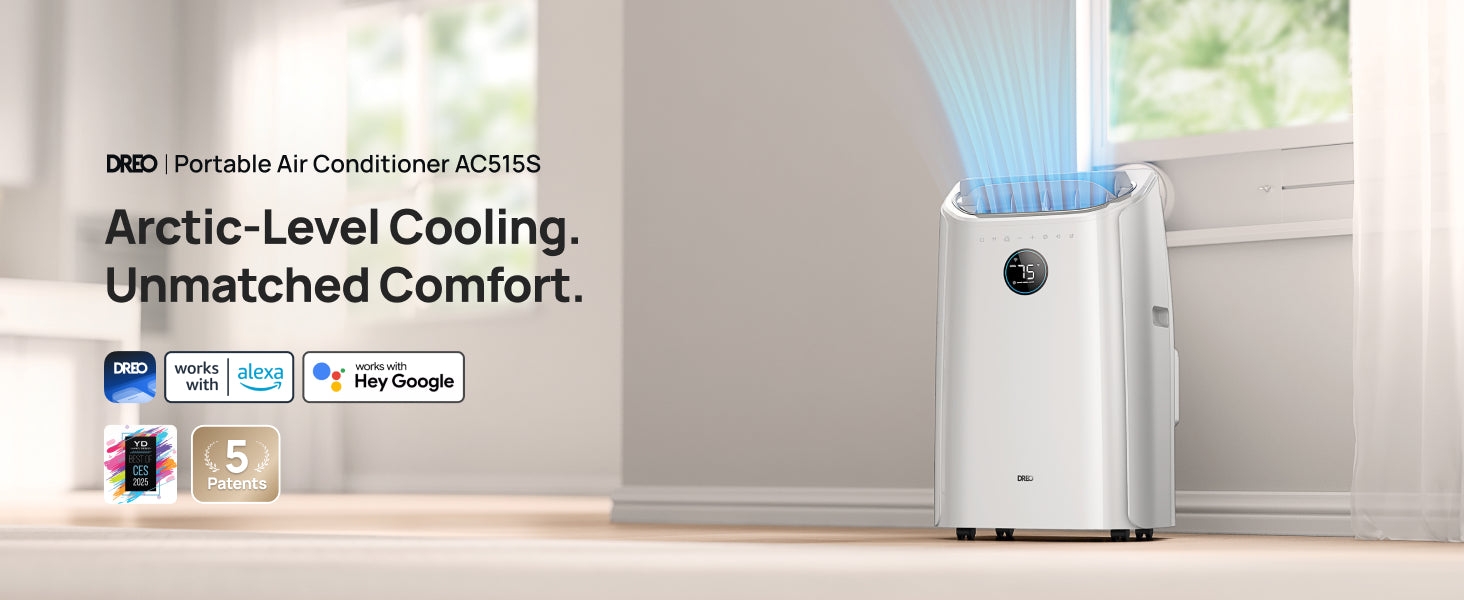

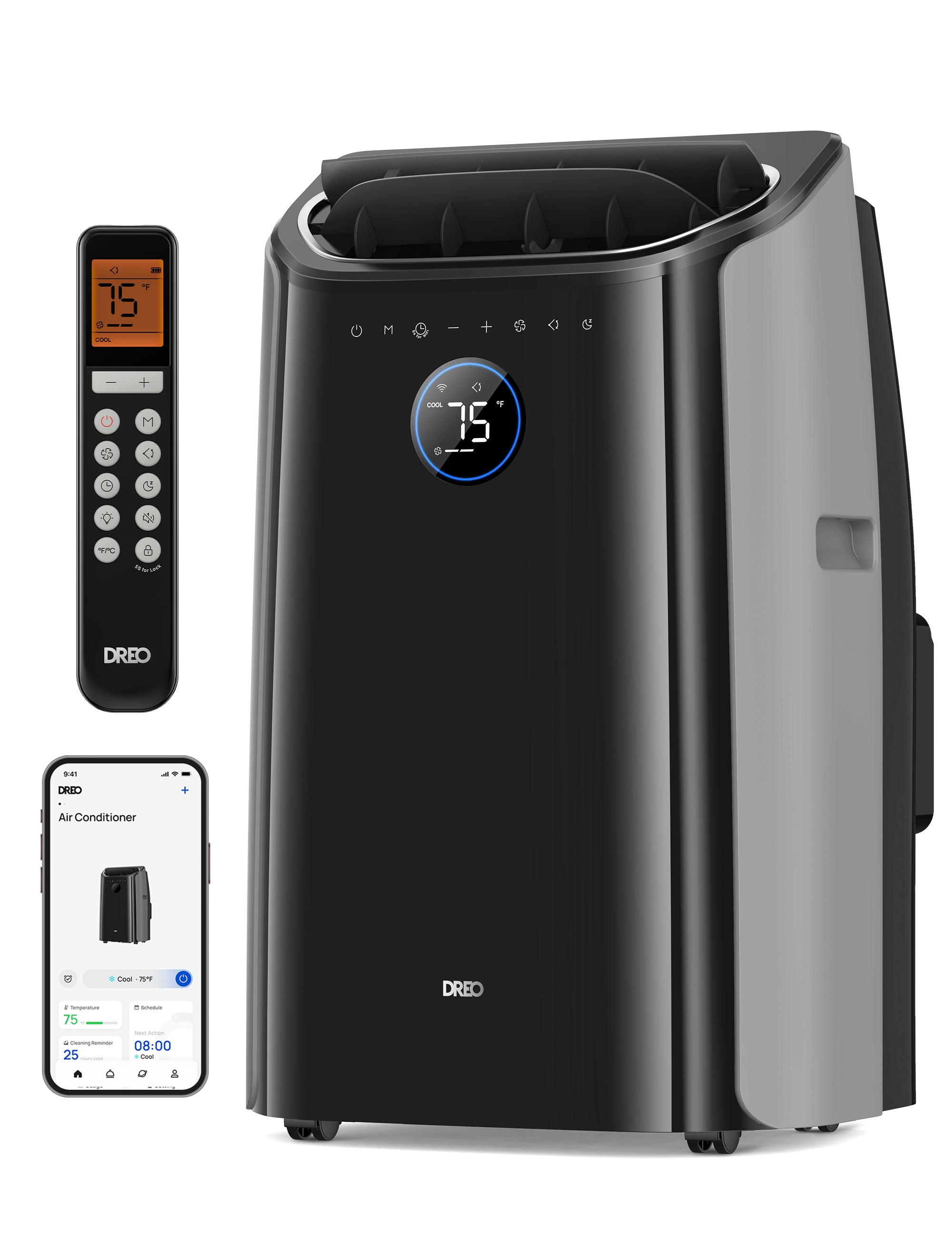

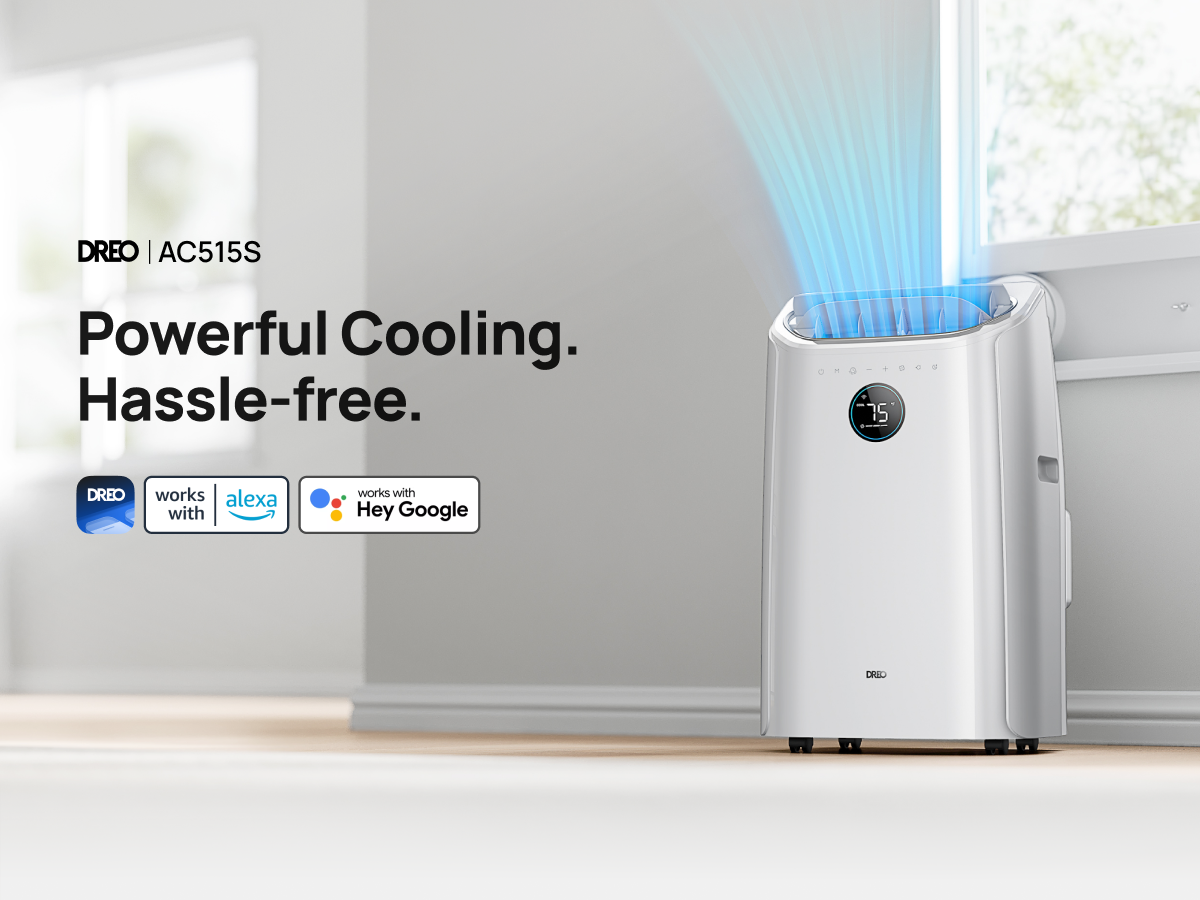

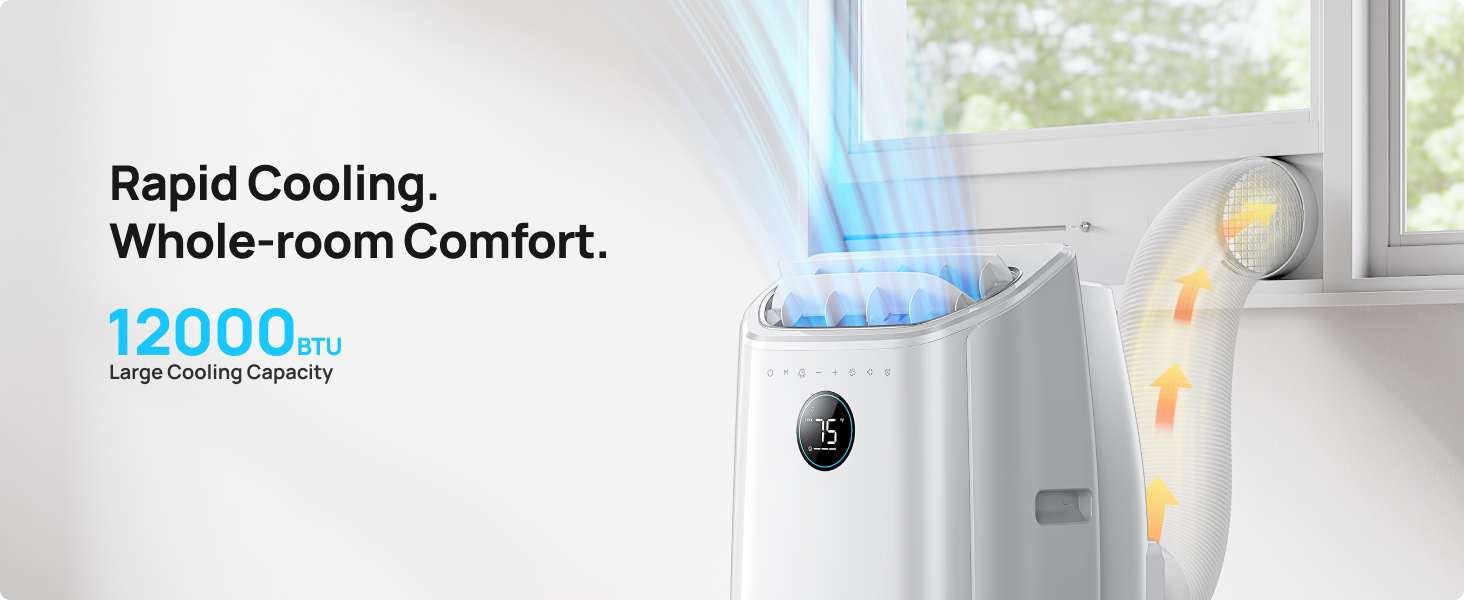

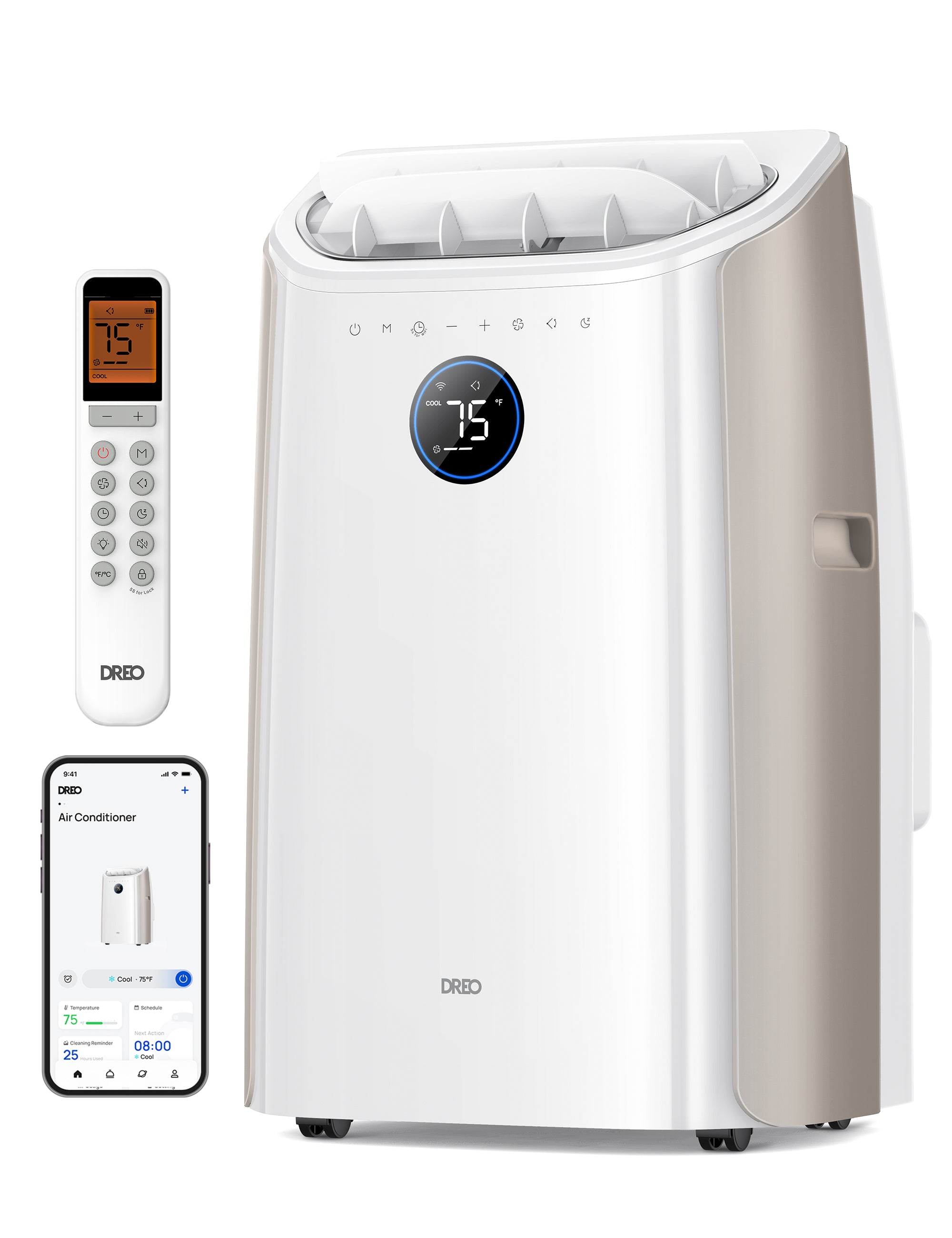

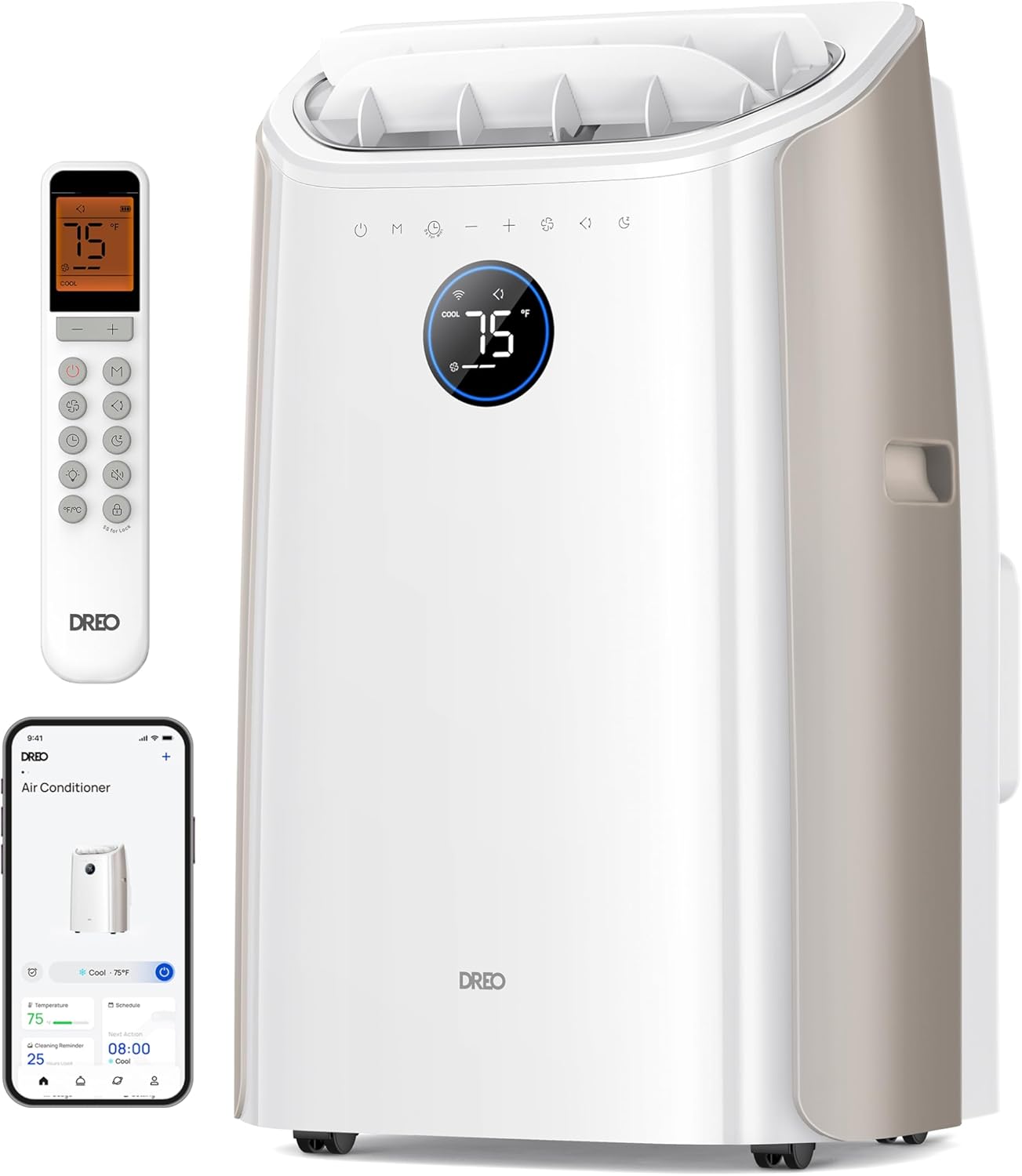

Smart Air Conditioner AC515S | 12000BTU

The two air conditioners have the same functions, with only a difference in cooling capacity in cool mode.

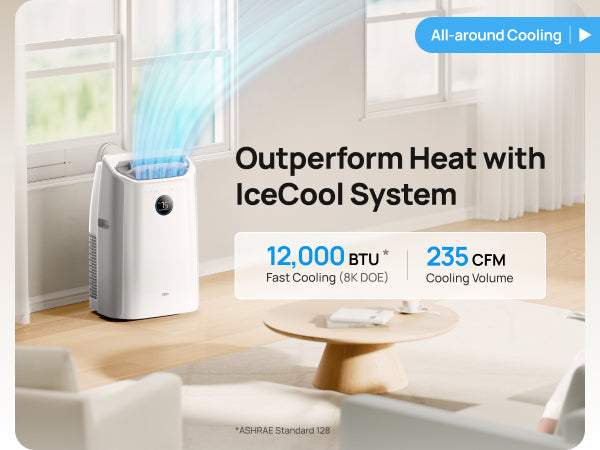

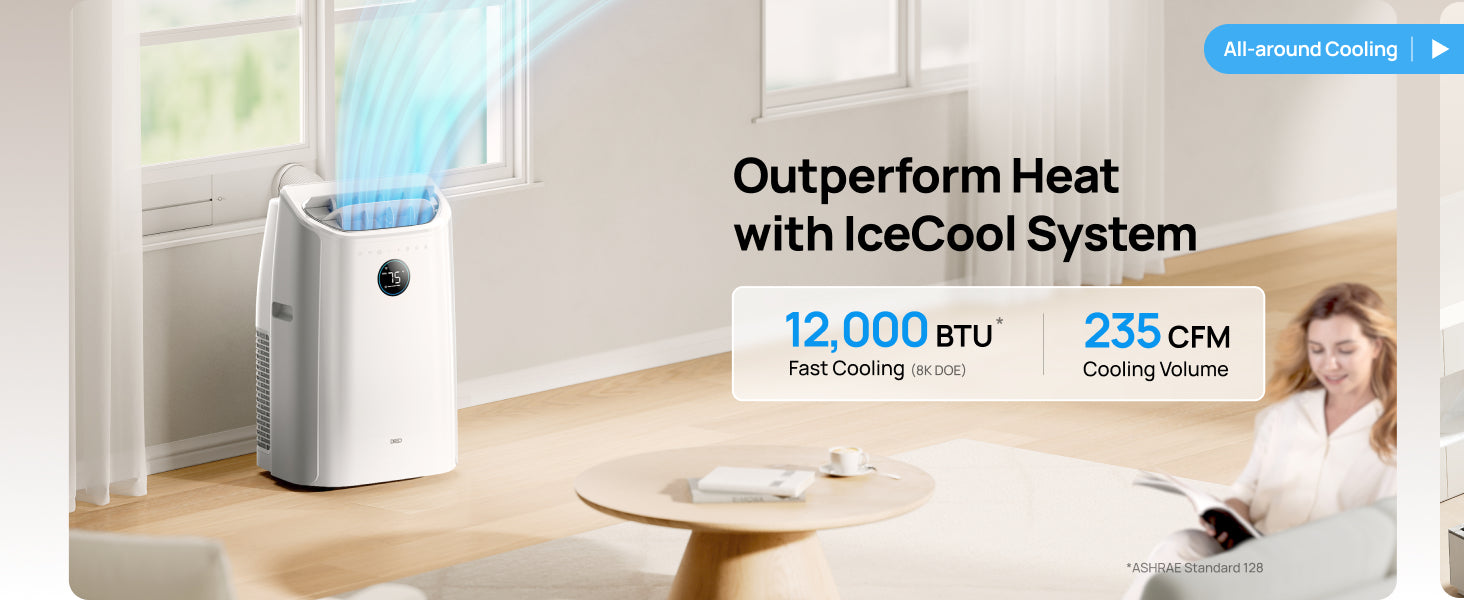

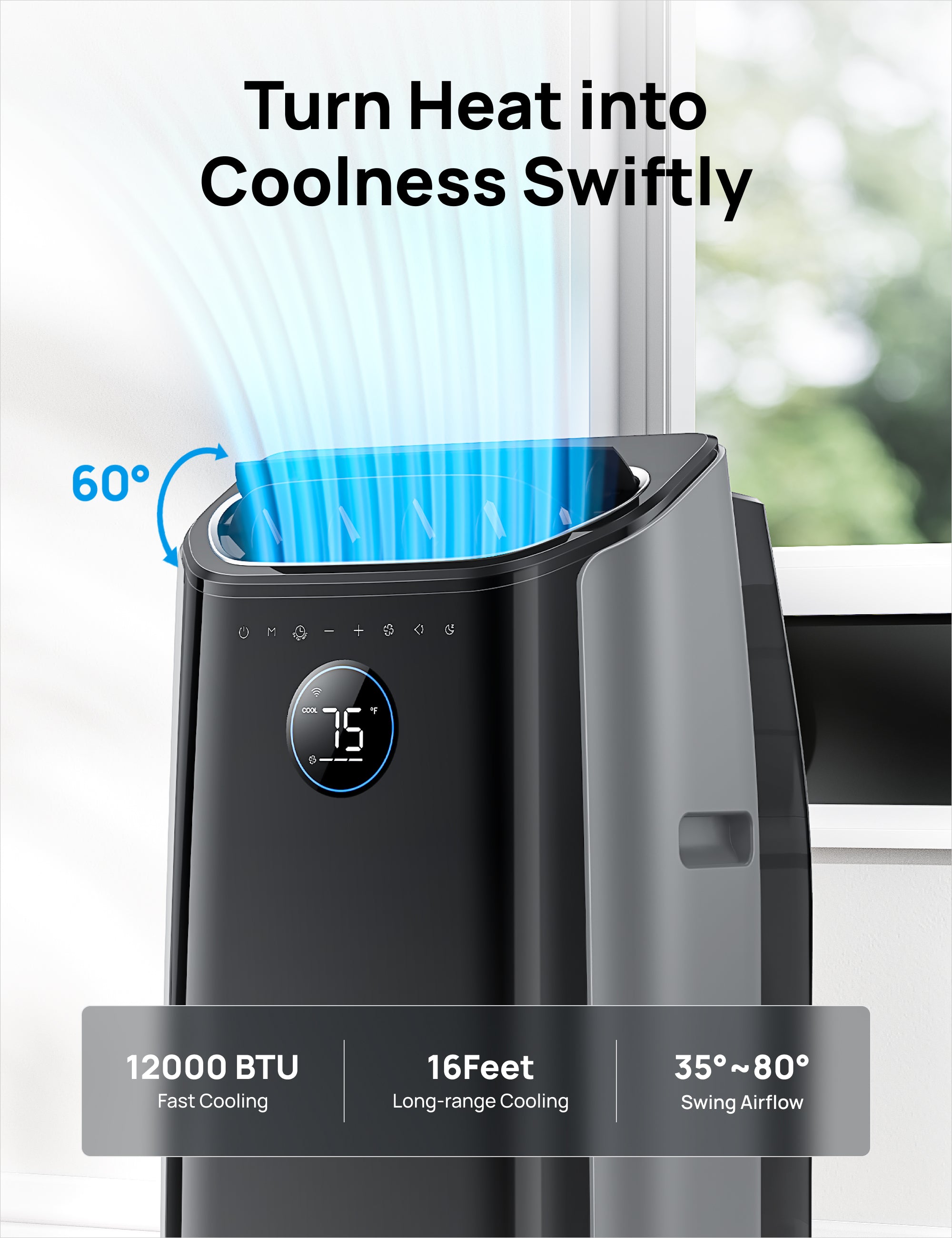

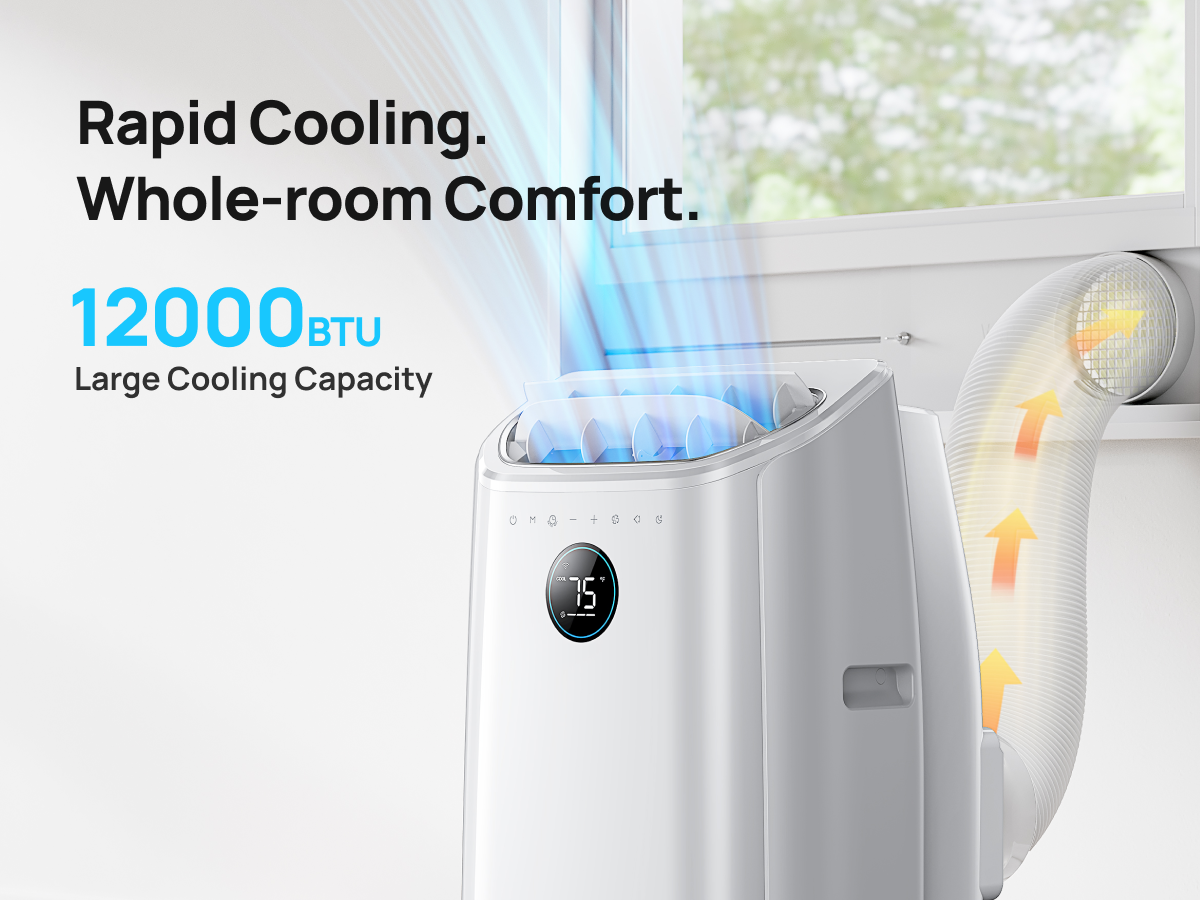

AC515S: 12,000 Btu/h (ASHRAE 128)
AC516S: 14,000 Btu/h (ASHRAE 128)

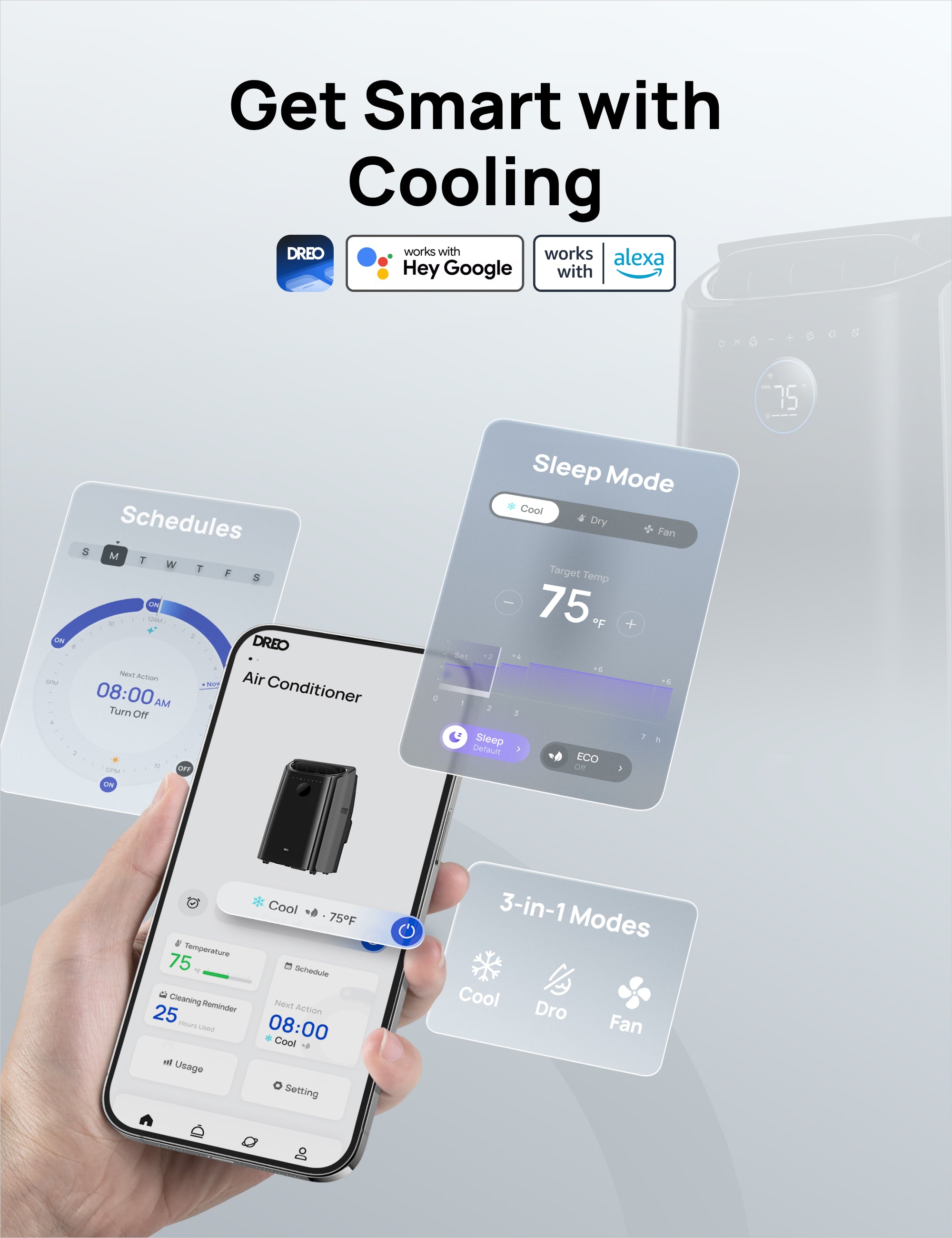

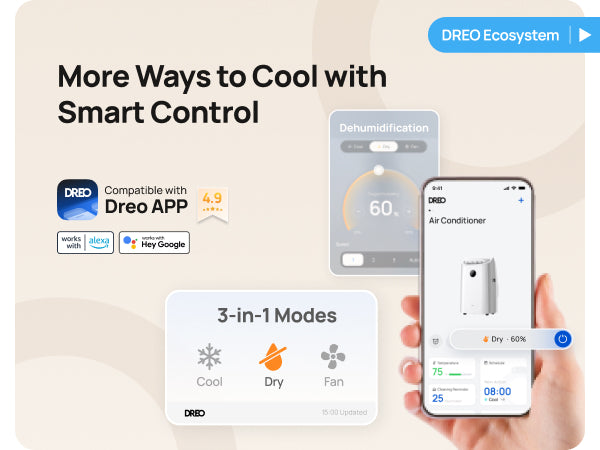

1. Launch Dreo and sign in or create an account by following in-app instructions.
2. Enable Bluetooth on your mobile device and plug in your air conditioner.
3. Hold the Timer button.
(Tip: The WiFi icon for 5 seconds to start WiFi connection settings. will keep flashing while pairing.)
4. Tap +Add Device and select AC515S/AC516S.
5. Follow in-app instructions to complete the WiFi connection.
6. You're now ready to control the appliance on your app.

No, it's single hose.

1. Confirm that the unit is securely plugged into the outlet.
2. Press the RESET button if the current device has tripped.
3. If the room temperature is lower than the set target temperature in Cool Mode, reset the temperature accordingly.
4. If you encounter the P1 protection code, it indicates that the water collection tray is full. Turn off your air conditioner, drain the water from the tray, and then restart the unit.

1. Ensure all windows and doors are tightly closed to prevent warm air from entering and cool air from escaping.
2. Turn off the unit and clean the filter thoroughly.
3. Restart the unit and lower the set temperature to provide a cooler airflow.
4. Turn off the unit, disconnect the vent hose, check for blockage, and reconnect the vent hose.

No, this unit does not have a heating function.

1. Place the air conditioner on a flat, level surface.
2. Turn off the unit and clean the filter.
Note: It's normal that the unit makes a gurgling sound which is caused by the flow of refrigerant inside the unit.

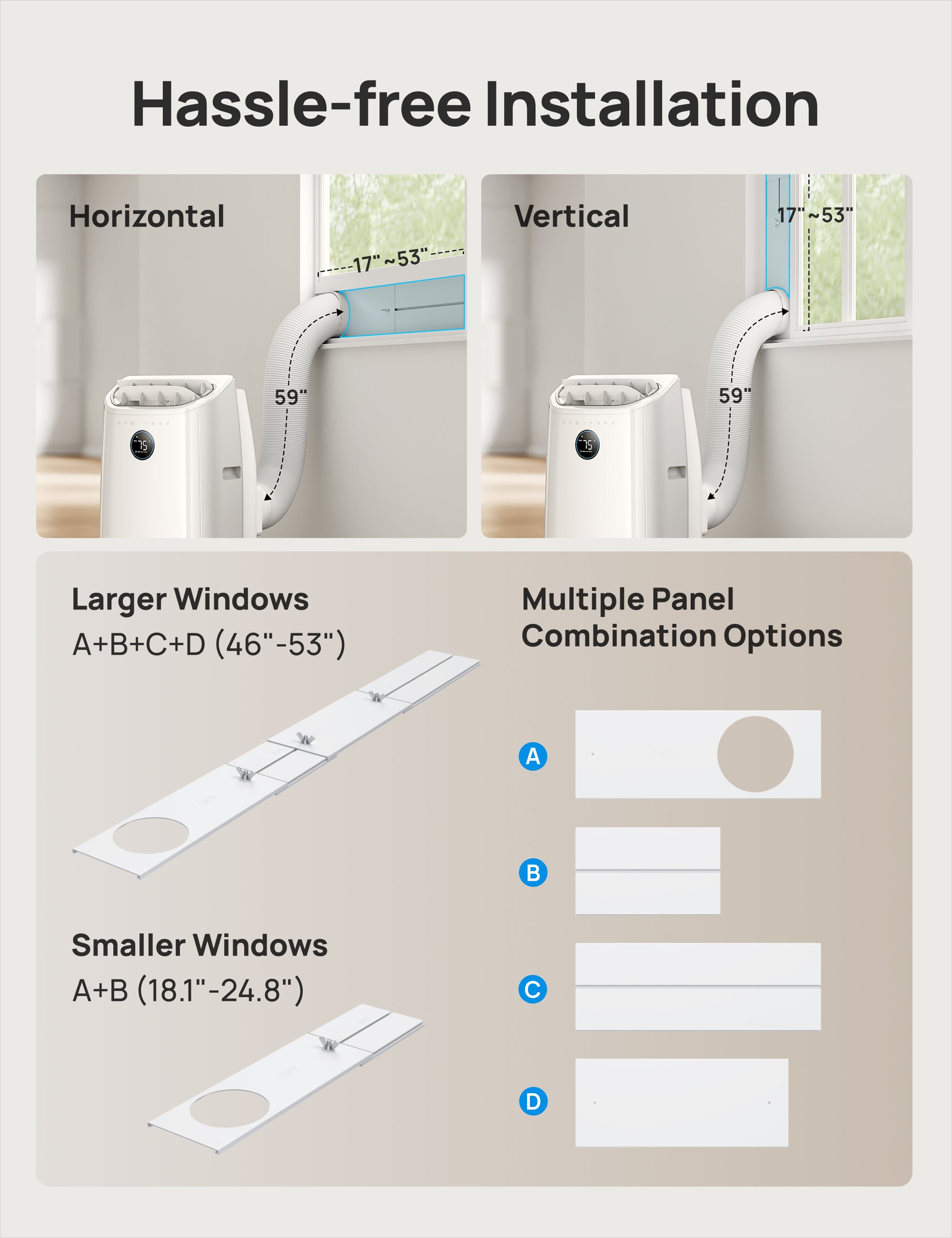

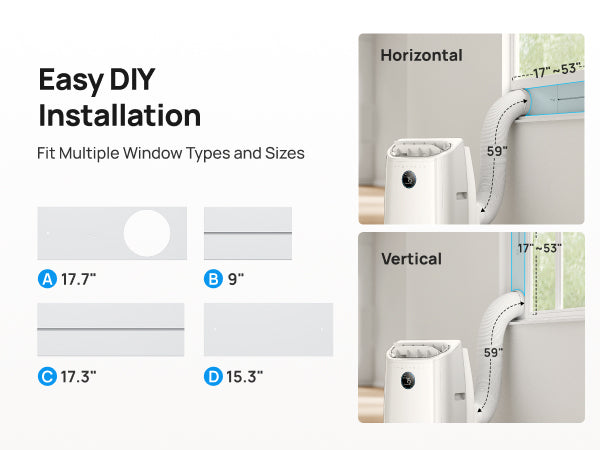

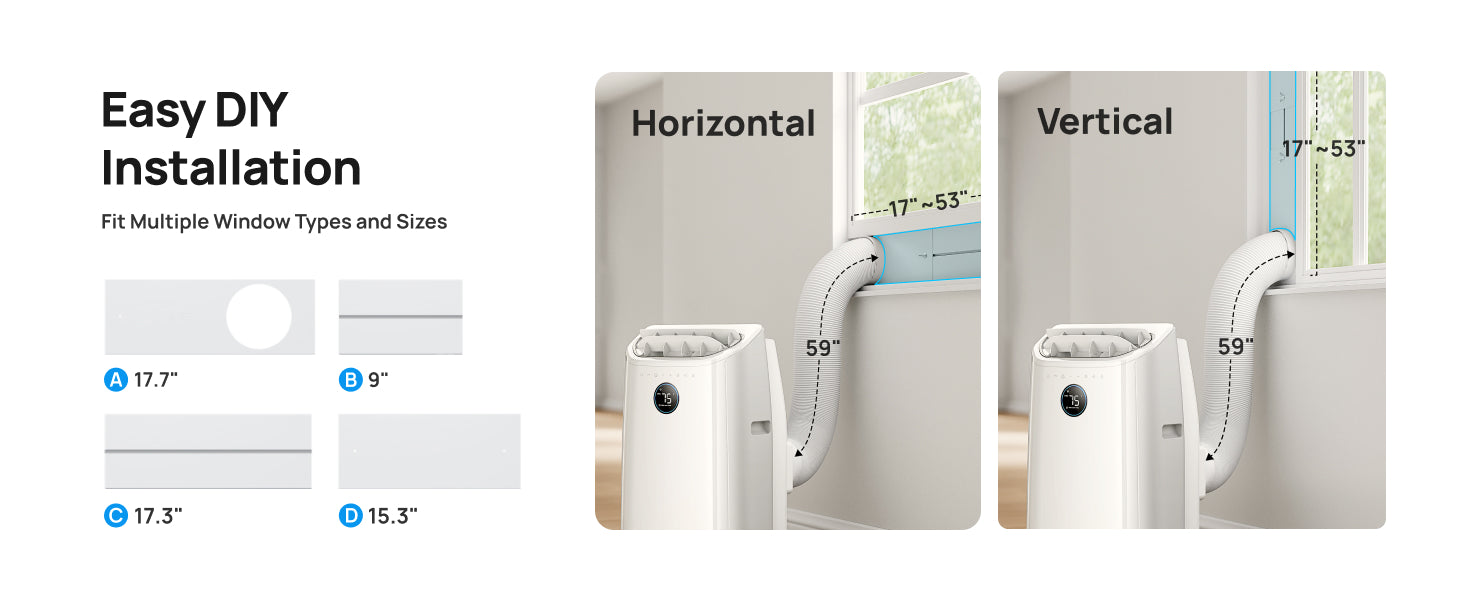

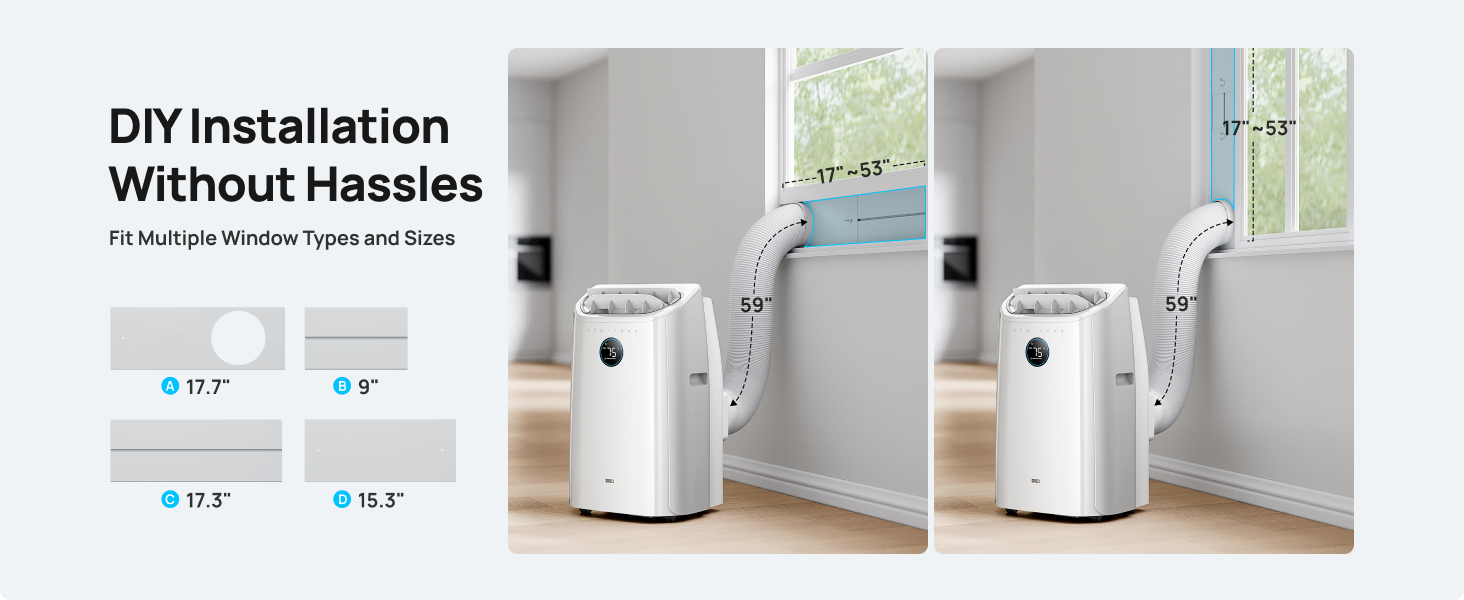

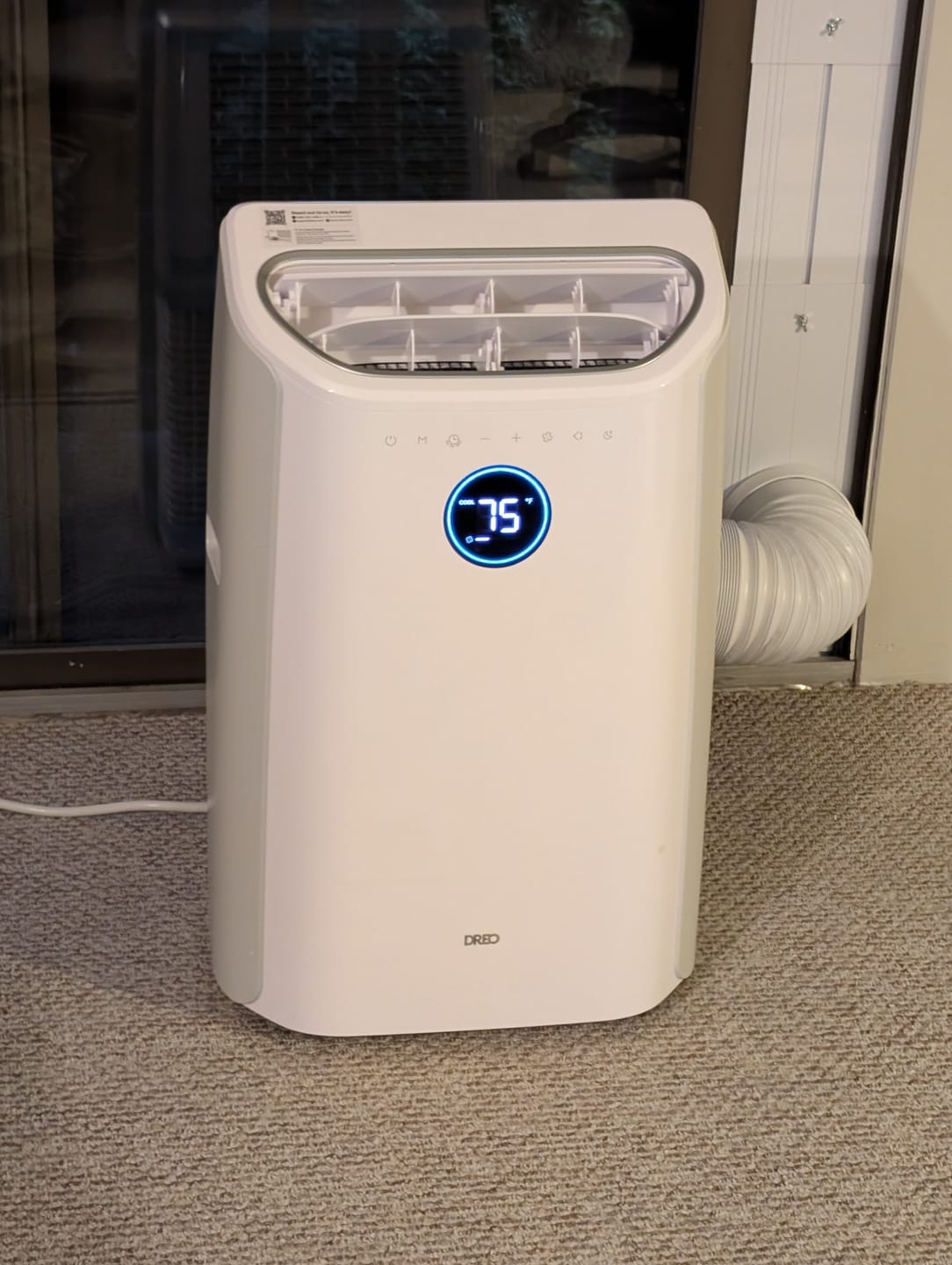

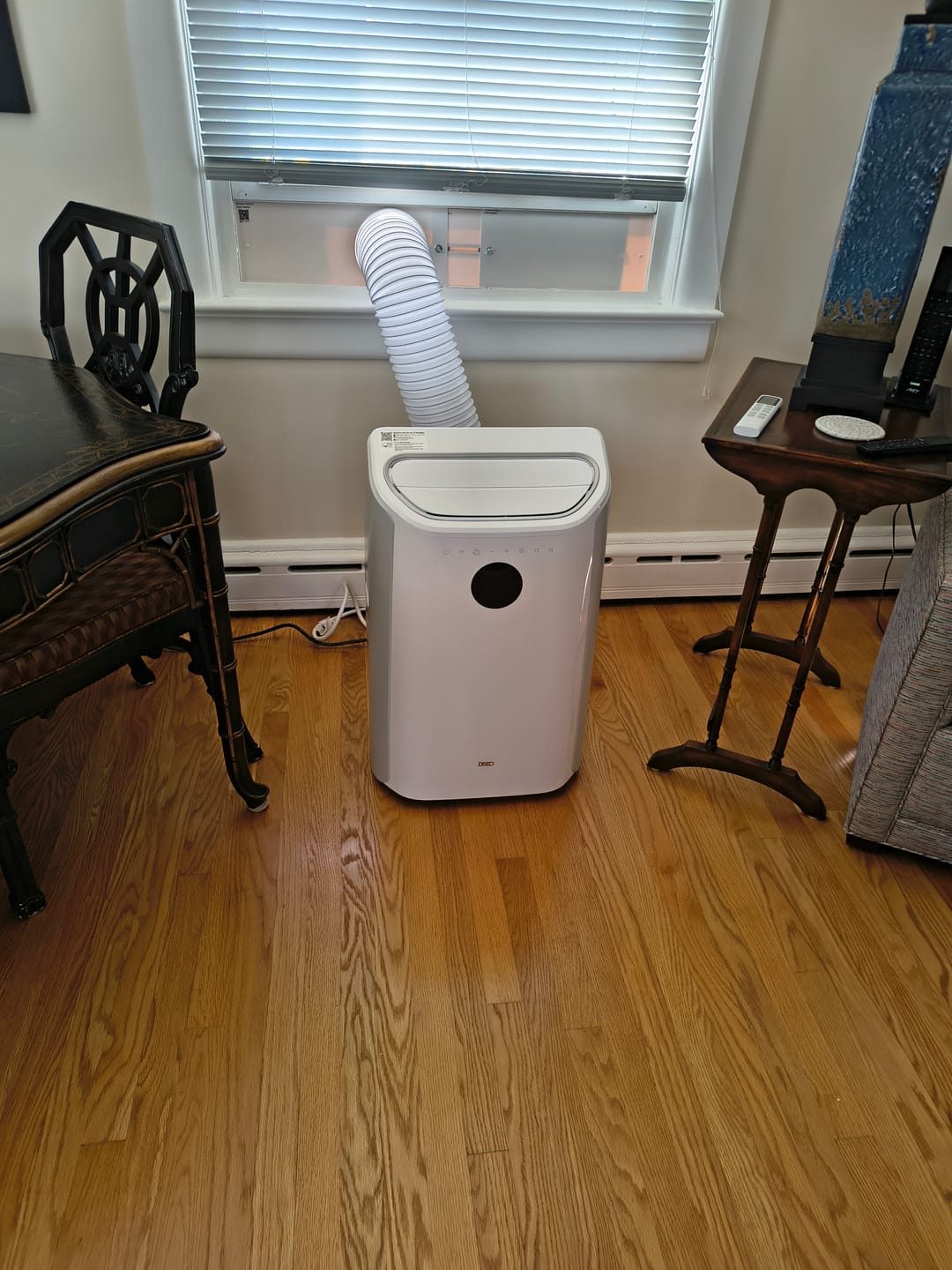

Yes, you can put the hose in a vertical or horizontal sliding window.

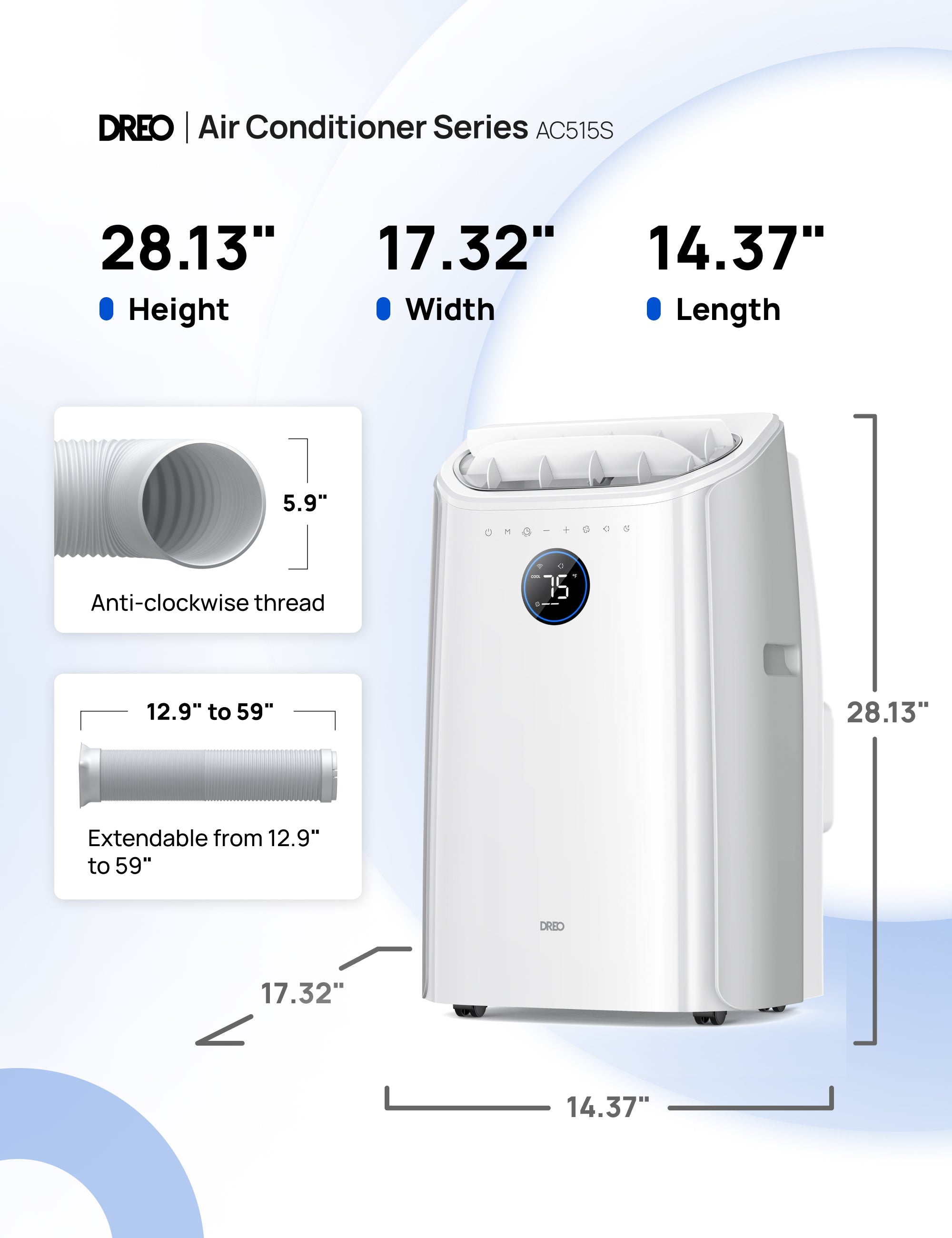

Standard maximum and minimum window openings:
MAXIMUM:53" (134.6 cm)
MINIMUM: 18" (45 cm)

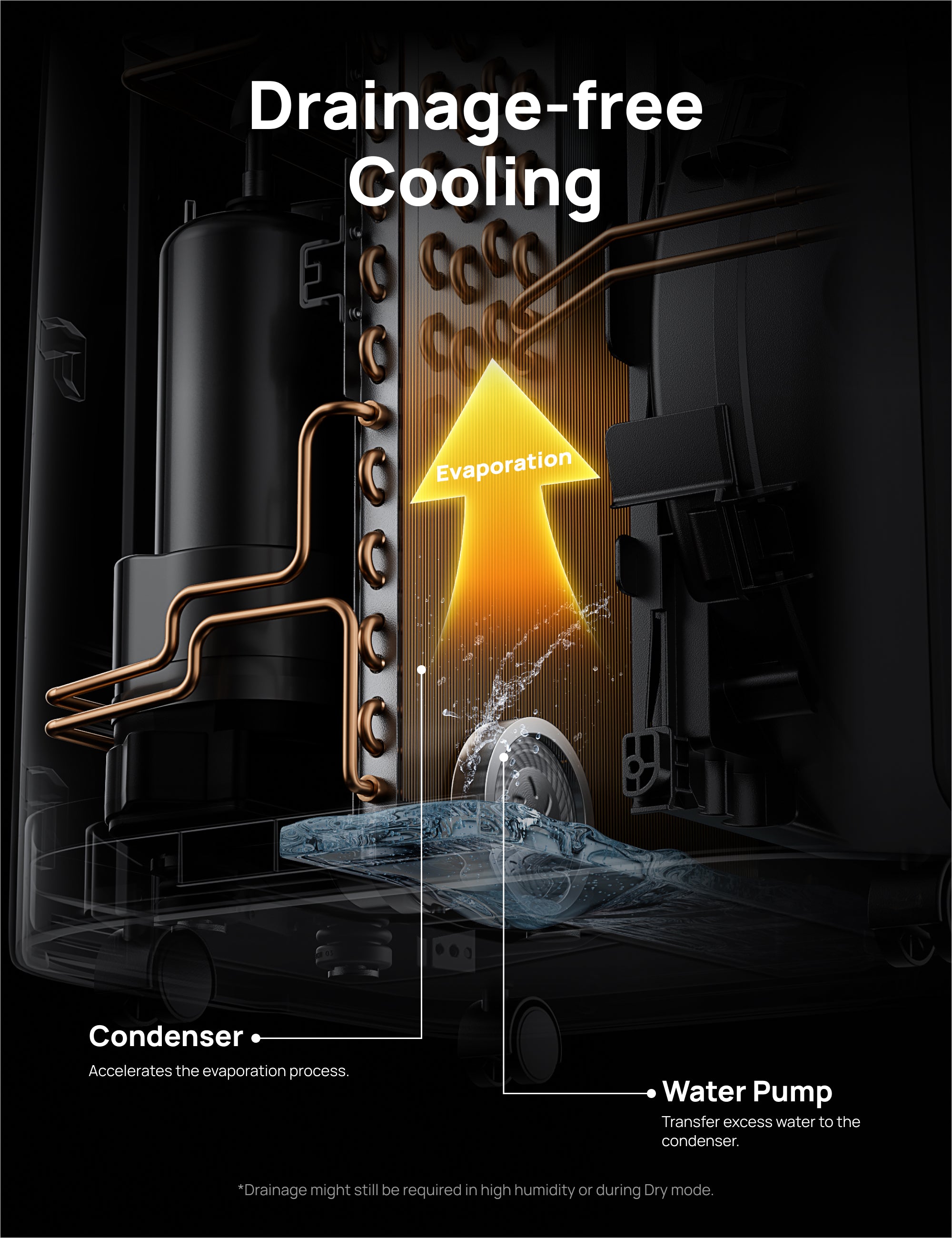

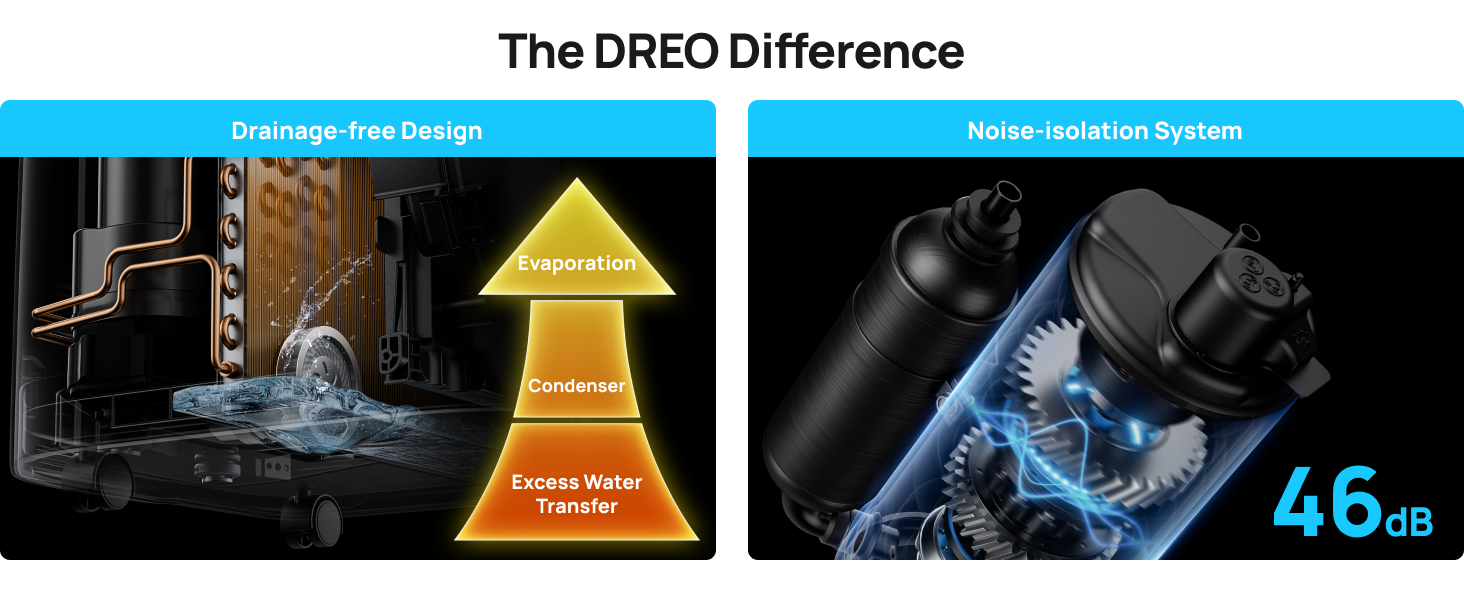

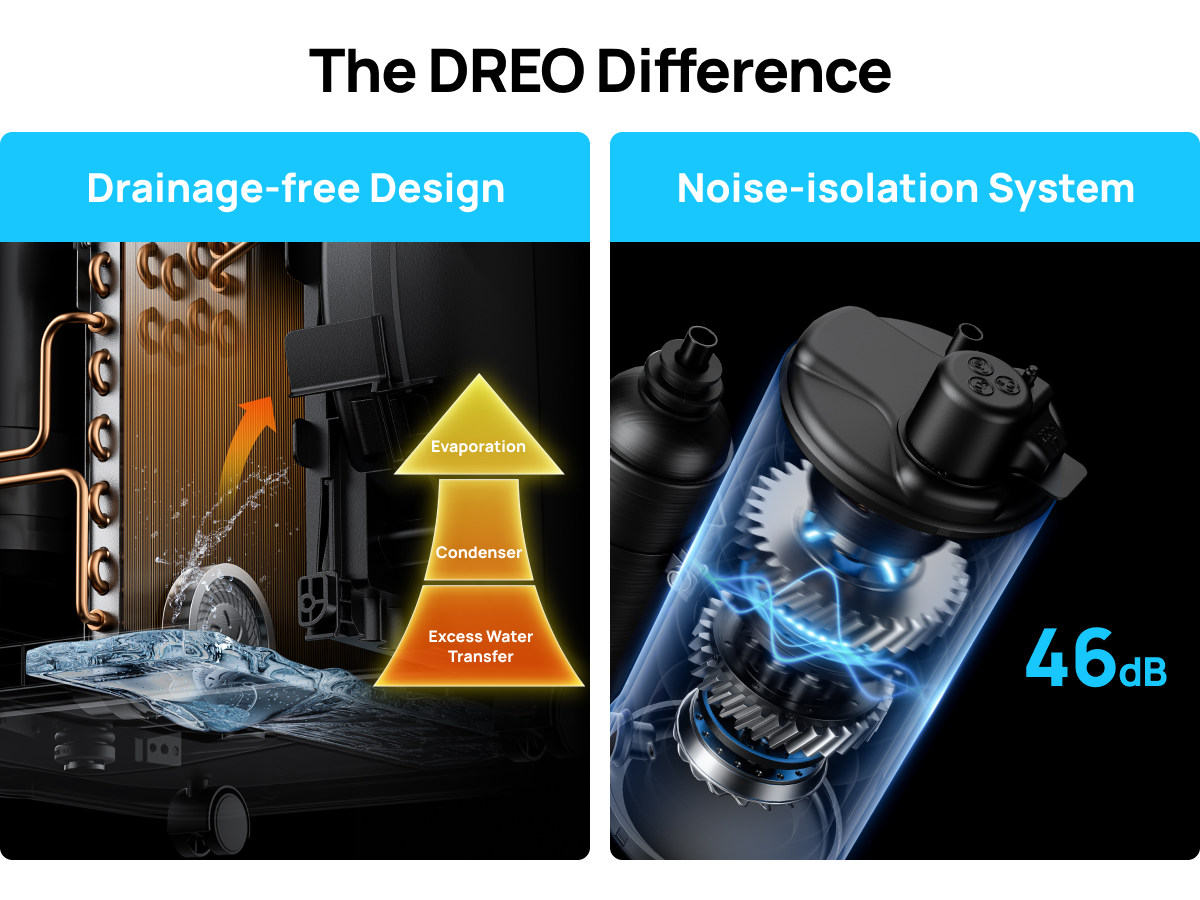

Condensation occurs during cooling, but it's minimal. The condensed water is directed to the condenser via a water pumping motor below, where it evaporates. Our system features patented auto-drain or self-evaporating technology, which automatically expels condensation when humidity levels are below 85%.

1. If indoor temperature is below 60°F (16°C), switch to FAN-only mode.
2. Check if the air filter is dirty. Clean the filter and switch the air conditioner to FAN-only mode.

The appliance is for use on a nominal 120V circuit and should be connected to a grounding outlet.

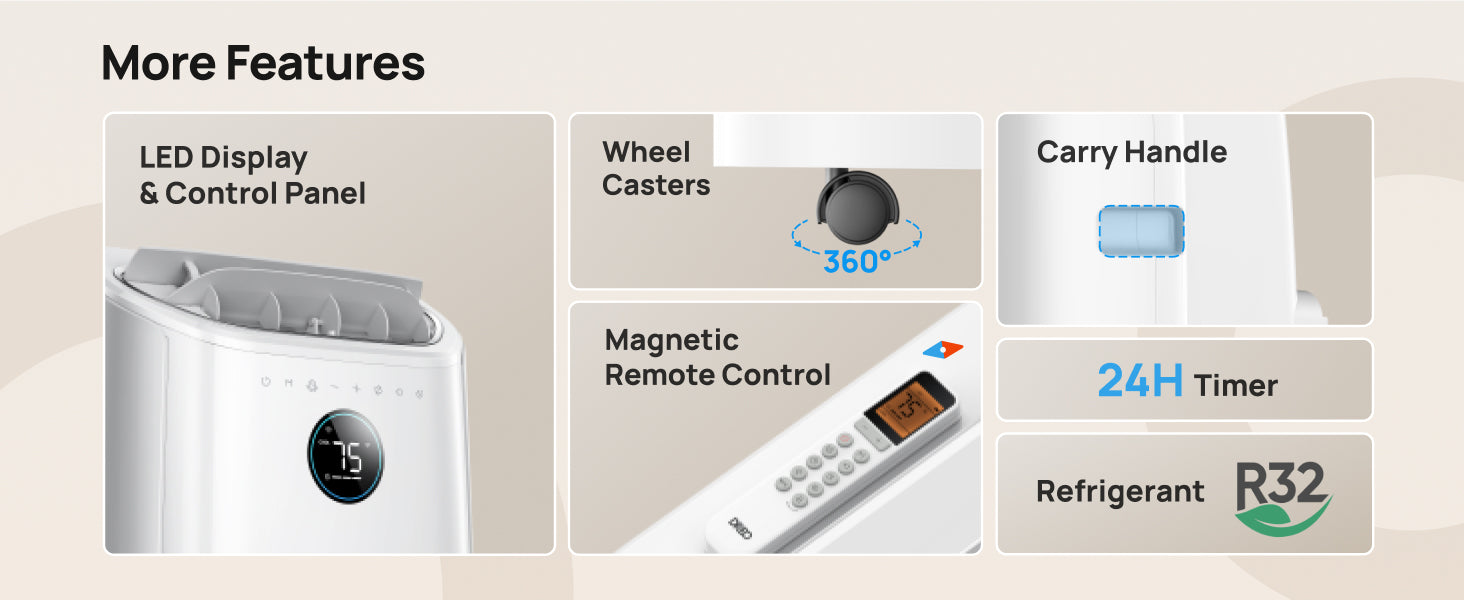

1. Install fresh batteries following the polarity guide inside the battery compartment.
2. Ensure there are no obstructions between the remote and the unit. Point the remote directly at the LED display screen of the device.
3. Operate the remote control within a maximum distance of 26 feet from the unit, preferably at an angle of less than 45 degrees for optimal performance.

1.8m

Please contact our Customer support. Please be sure to have your product model number for reference.

If the air conditioner occasionally displays Error codes E0/E1/E2, please try turning it off. After allowing the unit to cool down, you can turn it back on.
If the error codes occur frequently, please contact our Customer support at 888-290-1688 (Mon-Fri 7:00 a.m.-7:00 p.m. PST) or email: Support@dreo.com.
